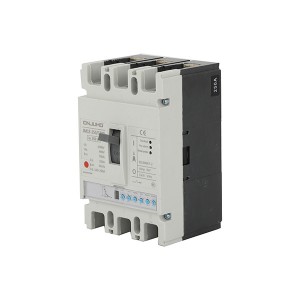

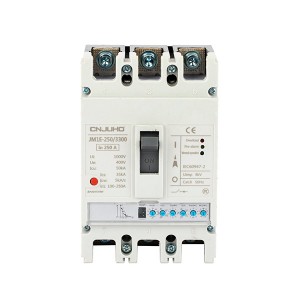

JM1-225LE series earth leakage circuit breaker (herein after called circuit breaker)is applied for the power distribution network of AC 50Hz,rated current 630A.The circuit breaker can protect people against indirect contact with dangerous electric current and prevent fire disaster caused by insulation fault and single-phase ground fault. It can be used to distribute electric power and protect power equipment against overload and short circuit. The circuit breaker can change the circuit and start motor infrequently. The rated residual operating current and the maximum off-time can be adjusted on-site according to actual situation, the circuit breaker can be customized alarm function and no tripping function.
The YCM1LE complies with standard of IEC60947-2
Parameter data sheet:
| Model | Rated current In A | Rated operate voltage V | Rated short-circuit breaking capacity | Rated residual short-circuit making and breaking capacity Im(A) | Rated residual action current In(mA) | Arc distance mm | |
| Icu(kA) | Ics(kA) | ||||||
| JM1-LE100 | 10.16.20.25.32.40.50.63.80.100.125A | 400 | 50 | 35 | 25%Icu | 100/300/500 | ≤50 |
| JM1-LE225 | 200.125.160.180.200.225.250A | 400 | 50 | 35 | 25%Icu | 100/300/500 | ≤50 |
| JM1-LE400 | 250.315.350.400A | 400 | 65 | 42 | 25%Icu | 100/300/500 | ≤50 |
| JM1-LE630 | 400.500.630.800A | 400 | 65 | 42 | 25%Icu | 100/300/500 | ≤50 |
MCCB Breaking capacity:
ICU 650kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
ICU 30kA 400/415 V AC 50/60 Hz conforming to IEC60947-2
ICU 20kA 440 V AC 50/60 Hz conforming to IEC60947-2
[Ics]MCCB rated service breaking capacity:
Ics 30kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
Ics 7kA 400/415 V AC 50/60 Hz conforming to IEC60947-2
Ics 5kA 440 V AC 50/60 Hz conforming to IEC60947-2
Suitability for isolation: Yes conforming to IEC60947-2
