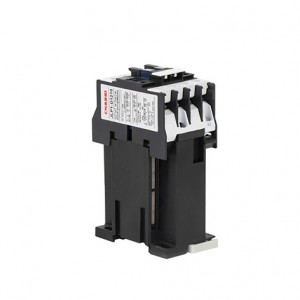

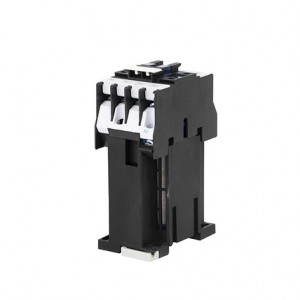

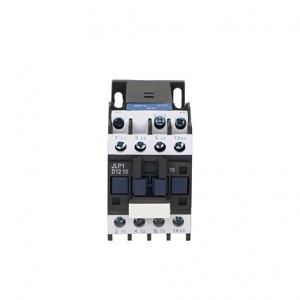

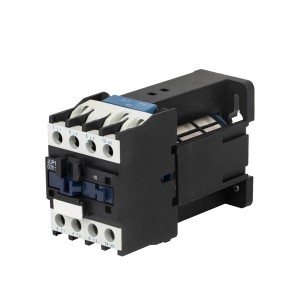

JLP1 series DC contactor is suitable for use in the circuits up to rated voltage 660V AC 50Hz or 60Hz, and in rated current 9-95A in AC-3/380V load circuits. For remote controlling circuit making, breaking and frequent starting AC motors. It can be also combine with the auxiliary contact group,time-delay block,air delayer, thermal overload relay devices etc.
This product conforms to GB14048.4, IEC60947-4-1 standard.
TYPE | reted woring currentA IeA (AC-3) | Rated heat current Ith(A) | rated working voltage UeA | rated insulated voltage UiA |
JLP1-D09 | 9 | 20 | 380v 660v | 660v |
JLP1-D12 | 12 | 20 | ||
JLP1-D18 | 18 | 32 | ||
JLP1-D25 | 25 | 40 | ||
JLP1-D32 | 32 | 50 | ||
JLP1-D40 | 40 | 60 | ||
JLP1-D50 | 50 | 80 | ||
JLP1-D65 | 65 | 80 | ||
JLP1-D80 | 80 | 125 | ||
JLP1-D95 | 95 | 125 |
TYPE | controlled power KW | Electrical life(AC-3)104 | contactsnumber | ||||
220V | 380V | 415V | 440V | 660V | |||
JLP1-D09 | 2.2 | 4 | 4 | 4 | 5.5 | 660V | |
JLP1-D12 | 3 | 5.5 | 5.5 | 5.5 | 5.5 | ||
JLP1-D18 | 4 | 7.5 | 9 | 9 | 9 | ||
JLP1-D25 | 5.5 | 11 | 11 | 11 | 11 | 3P+NO | |
JLP1-D32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NC | |
JLP1-D40 | 11 | 18.5 | 22 | 22 | 30 | ||
JLP1-D50 | 15 | 22 | 25 | 30 | 33 | 3P+NO+NC | |
JLP1-D65 | 18.5 | 30 | 37 | 37 | 37 | ||
JLP1-D80 | 22 | 37 | 45 | 45 | 45 | ||
JLP1-D95 | 25 | 45 | 45 | 45 | 45 | ||
