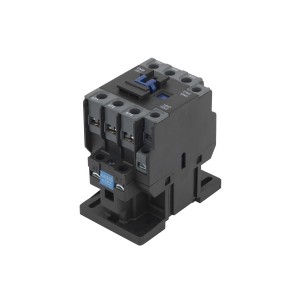

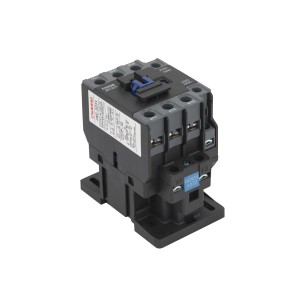

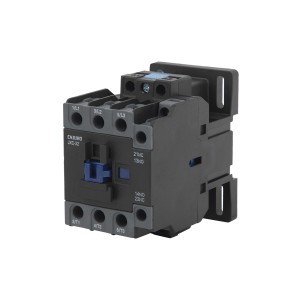

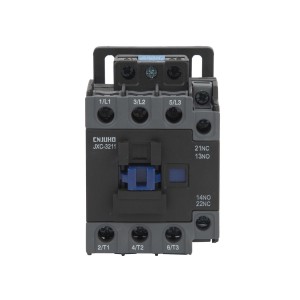

The new JXC AC contactors feature a novel appearance and a compact structure. They are
mainly used for frequent starts and control of AC motors as well as remote circuit making /
breaking.They can also be combined with appropriate thermal overload relays to form
electromagnetic starters.
Compliant standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1.
● Rated operation current Ie: 6A~100A
● Rated operation voltage Ue: 220V~690V
● Rated insulation voltage: 690V (JXC-06M~100), 1000V (JXC-120~630)
● Number of poles: 3P and 4P (only for JXC-06M~12M)
● Coil control method: AC (JXC-06(M)~225), DC (JXC-06M~12M),AC/DC (JXC-265~630)
● Installation method: JXC-06M~100 rail and screw installation,JXC-120~630 screw installation
| Type | Operation and installation conditions |
| Installation class | III |
| Pollution degree | 3 |
| Compliant standards | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 |
| Certification mark | CE |
| Enclosure protection degree | JXC-06M~38: IP20; JXC-40~100: IP10; JXC-120~630: IP00 |
| Ambient temperature | Operation temperature limits: -35°C~+70°C. Normal operation temperature range: -5°C~+40°C. The 24-hour average temperature should not exceed +35°C. For use beyond the normal operation temperature range, see "Instructions for use in abnormal conditions" in the annex. |
| Altitude | Not exceeding 2000 m above sea level |
| Atmospheric conditions | The relative humidity should not exceed 50% at the upper temperature limit of +70°C. A higher relative humidity is allowed at a lower temperature, e.g. 90% at +20°C. Special precautions should be taken against occasional condensation due to humidity variations. |
| Installation conditions | The angle between the installation surface and the vertical surface should not exceed ±5°. |
| Shock and vibration | The product should be installed in places without significant shaking,shock, and vibration. |
Main circuit parameters and technical performance
| Contactor model | JXC-06M | JXC-09M | JXC-12M | JXC-06 | JXC-09 | JXC-12 | JXC-16 | JXC-18 | JXC-22 | |||
| Conventional thermal current Ith (A) | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 32 | 32 | |||
| Rated insulation voltage Ui (V) | 690 | |||||||||||
| Rated impulse withstand voltage Uimp (kV) | 6 | 8 | ||||||||||
| Rated making capacity | Making current: 10×Ie (AC-3) or 12×Ie (AC-4) | |||||||||||
| Rated breaking capacity | Breaking current: 8×Ie (AC-3) or 10×Ie (AC-4) | |||||||||||
| Rated operation current Ie (A) | 220V/230V/240V | AC-3 | 6 | 9 | 12 | 6 | 9 | 12 | 16 | 18 | 22 | |
| AC-4 | 6 | 9 | 12 | 6 | 9 | 12 | 16 | 18 | 22 | |||
| 380V/400V/415V | AC-3 | 6 | 9 | 12 | 6 | 9 | 12 | 16 | 18 | 22 | ||
| AC-4 | 6 | 9 | 9 | 6 | 9 | 12 | 12 | 18 | 18 | |||
| 660V/690V | AC-3 | 3.8 | 4.9 | 4.9 | 3.8 | 6.6 | 8.9 | 8.9 | 12 | 14 | ||
| AC-4 | 3.8 | 4.9 | 4.9 | 3.8 | 6.6 | 8.9 | 8.9 | 12 | 12 | |||
| Rated control power | AC-3 (kW) | 220V/230V/240V | 1.5 | 2.2 | 3 | 1.5 | 2.2 | 3 | 3 | 4 | 5.5 | |
| 380V/400V/415V | 2.2 | 4 | 5.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 | |||
| 660V/690V | 3 | 4 | 4 | 3 | 5.5 | 7.5 | 7.5 | 10 | 11 | |||
| Electrical life (cycles) | AC-3 | 1.2×10^6 | ||||||||||
| Mechanical life (cycles) | 1.2×10^6 | |||||||||||
| Main contact | 3 NO, 4 NO, 2 NO+2 NC | 3 NO | ||||||||||
| Fuse supplied for SCPD | NT00-20 | NT00-20 | NT00-25 | NT00-20 | NT00-20 | NT00-25 | NT00-25 | NT00-32 | NT00-32 | |||
| Matching thermal overload relay | NXR-12 | NXR-25 | ||||||||||
| Built-in auxiliary contact | 3P | 1 NO or 1 NC | 1 NO+1 NC | |||||||||
| 4P | - | |||||||||||
