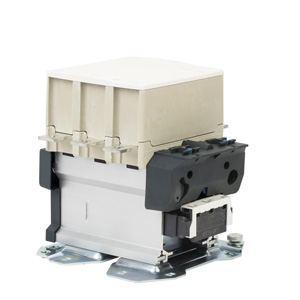

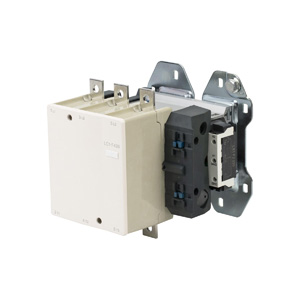

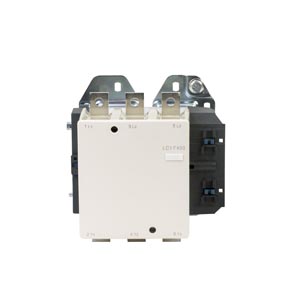

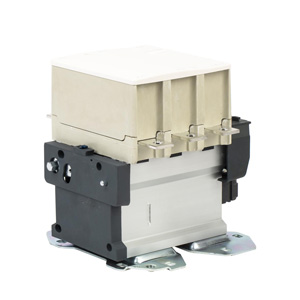

JLC1-F AC contactor is suitable for using in the circuits u to the rated voltage 380V AC 50/60Hz, current 800A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be used for the control of distribution circuits of rated current from 115A to 800A.
It conforms to IEC60947-4-1.
| AC-3(A)Rated operational current in AC-3(A) | Max power ratings of 3-phase motors in | Operating frequency (time/ hour) | Electrical lifeAC-3 x104 | Mecha- nical life x104 | |||||||
| category AC-3(kW) | AC-3 | ||||||||||
| 220V 230V | 380V 400V | 415V | 440V | 500V | 660V | 1000V | |||||
| 690V | |||||||||||
| JLC1-F115 | 115 | 30 | 55 | 59 | 59 | 75 | 80 | 65 | 1200 | 120 | 1000 |
| JLC1-F1154 | 115 | 30 | 55 | 59 | 59 | 75 | 80 | 65 | 1200 | 120 | 1000 |
| JLC1-F150 | 150 | 40 | 75 | 80 | 80 | 90 | 100 | 65 | 1200 | 120 | 1000 |
| JLC1-F1504 | 150 | 40 | 75 | 80 | 80 | 90 | 100 | 65 | 1200 | 120 | 1000 |
| JLC1-F185 | 185 | 55 | 90 | 100 | 100 | 110 | 110 | 100 | 600 | 100 | 600 |
| JLC1-F1854 | 185 | 55 | 90 | 100 | 100 | 110 | 110 | 100 | 600 | 100 | 600 |
| JLC1-F225 | 225 | 63 | 110 | 110 | 110 | 130 | 129 | 100 | 600 | 100 | 600 |
| JLC1-F2254 | 225 | 63 | 110 | 110 | 110 | 130 | 129 | 100 | 600 | 100 | 600 |
| JLC1-F265 | 265 | 75 | 132 | 140 | 140 | 160 | 160 | 147 | 600 | 80 | 600 |
| JLC1-F2654 | 265 | 75 | 132 | 140 | 140 | 160 | 160 | 147 | 600 | 80 | 600 |
| JLC1-F330 | 330 | 100 | 160 | 180 | 200 | 200 | 220 | 160 | 600 | 80 | 600 |
| JLC1-F3304 | 330 | 100 | 160 | 180 | 200 | 200 | 220 | 160 | 600 | 80 | 600 |
| JLC1-F400 | 400 | 110 | 200 | 220 | 250 | 257 | 280 | 185 | 600 | 80 | 600 |
| JLC1-F4004 | 400 | 110 | 200 | 220 | 250 | 257 | 280 | 185 | 600 | 80 | 600 |
| JLC1-F500 | 500 | 147 | 250 | 280 | 295 | 355 | 330 | 315 | 600 | 80 | 600 |
| JLC1-F5004 | 500 | 147 | 250 | 280 | 295 | 355 | 335 | 335 | 600 | 80 | 600 |
| JLC1-F630 | 630 | 200 | 335 | 375 | 400 | 400 | 450 | 450 | 600 | 80 | 600 |
| JLC1-F6304 | 630 | 200 | 335 | 375 | 400 | 400 | 450 | 450 | 600 | 80 | 600 |
| JLC1-F780 | 780 | 220 | 400 | 425 | 425 | 450 | 470 | 450 | 600 | 80 | 600 |
| JLC1-F7804 | 780 | 220 | 400 | 425 | 425 | 450 | 475 | 450 | 600 | 80 | 600 |
| JLC1-F800 | 800 | 250 | 415 | 450 | 450 | 450 | 470 | 450 | 600 | 80 | 600 |
