● Application: remote making & breaking circuits; protect circuit from over-load when assembling
with thermal over-load relay;frequent start-up and control ofAC contactor;
Electric life: 1000000
Mechanical life:100000
Matching fuse: RT16

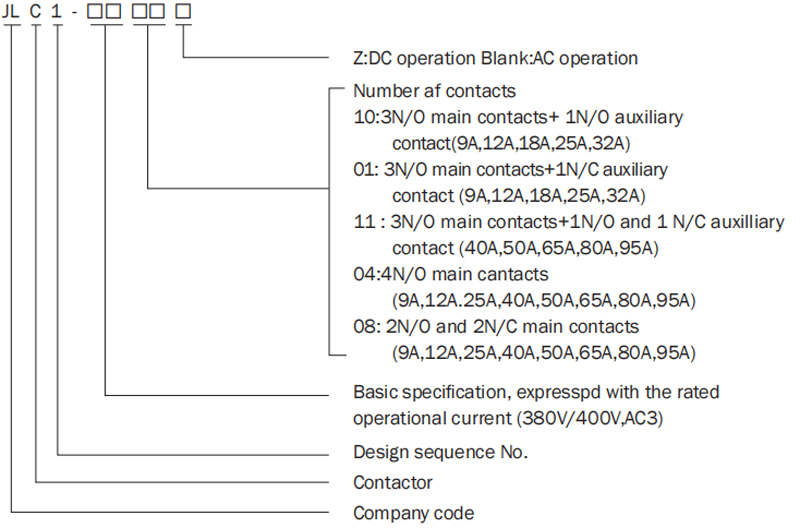

| Type | Rated insulation voltage(V) | Conventional thermal current(A) | Rated operation current(A) | Control power(kw) | No .of contacts | Remark | ||||
| 220V | 380V | 415V | 440V | 660V | ||||||
| JLC1-DN0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC | Installation method 1.with two screws 2.35mm din rail |
| JLC1-DN1210 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC | ||
| JLC1-DN1810 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC | ||
| JLC1-DN2510 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC | ||
| JLC1-DN3210 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC | ||
| JLC1-DN4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | Installation method 1.with three screws 2.75mm or 35mm din rail | |
| JLC1-DN5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | |||
| JLC1-DN6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | |||
| JLC1-DN8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | |||
| JLC1-DN9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | |||
| Type | JLC1-DN09 | JLC1-DN12 | JLC1-DN18 | JLC1-DN25 | JLC1-DN32 | JLC1-DN40 | JLC1-DN50 | JLC1-DN65 | JLC1-DN80 | JLC1-DN95 | ||
| Pick-up voltage 50/60Hz(V) | (0.85~ 1.1)Us | (0.85~ 1.1) Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85 ~1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | ||
| Release voltage 50/60Hz(v) | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | ||
| Coil power | 50Hz 60Hz | Pick-up(VA) | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | 200 | 200 |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
| Pick-up(VA) | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | 200 | 200 | ||
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
| Power consumption (W) | 1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 | ||
