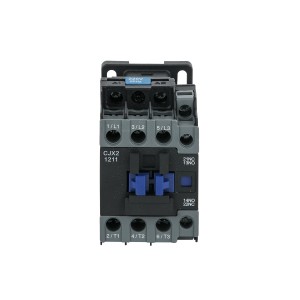

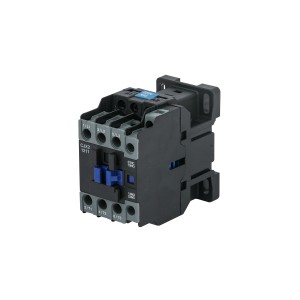

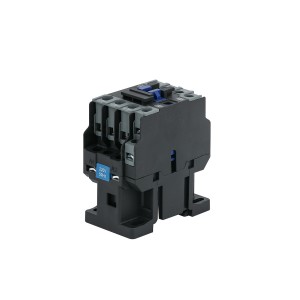

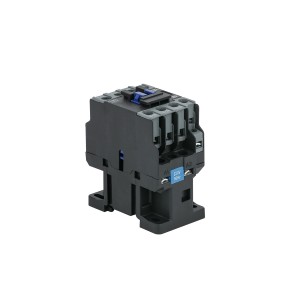

The new JXC AC contactors feature a novel appearance and a compact structure. They are
mainly used for frequent starts and control of AC motors as well as remote circuit making breaking
● Rated operation current Ie: 6A~100A
● Rated operation voltage Ue: 220V~690V
● Rated insulation voltage: 690V (JXC-06M~100), 1000V (JXC-120~630)
● Number of poles: 3P and 4P (only for JXC-06M~12M)
● Coil control method: AC (JXC-06(M)~225), DC (JXC-06M~12M),AC/DC (JXC-265~630)
● Installation method: JXC-06M~100 rail and screw installation,JXC-120~630 screw installation
| Type | Rated insulation voltage(V) | Conventional thermal current(A) | Rated operation current(A) | Control power(kw) | No .of contacts | ||||
| 220V | 380V | 415V | 440V | 660V | |||||
| JXC-0911 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+1N.O+1N.C |
| JXC-1211 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+1N.O+1N.C | |
| JXC-1811 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+1N.O+1N.C | |
| JXC-2511 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+1N.O+1N.C | |
| JXC-3211 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+1N.O+1N.C | |
| JXC-4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+1N.O+1N.C | |
| JXC-5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | ||
| JXC-6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | ||
| JXC-8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | ||
| JXC-9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | ||
Instructions for use of correction factors in high altitude areas
● IEC/EN 60947-4-1 standard defines the relation between alitude and impulse withstand voltage. An alitude of 2000 m above sea
level or lower hasno significant impact on product performance.
● At an altitude higher than 2000 m, air cooling efect and decease of rated impulse withstand voltage have to be considered.In ths
case, design anduse of products have to be negotiated by the manufacturer and the user.
● The correction factors for rated impulse withstand voltage and rated operation current for alitudes higher than 2000 m are given in
the followingtable.The rated operation voltage remains unchanged.
| Altitude (m) | 2000 | 3000 | 4000 |
| Rated impulse withstand voltage correction factor | 1 | 0.88 | 0.78 |
| Rated operation current correction factor | 1 | 0.92 | 0.9 |
