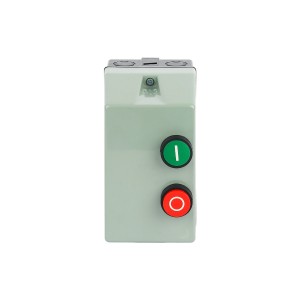

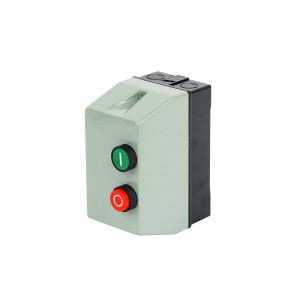

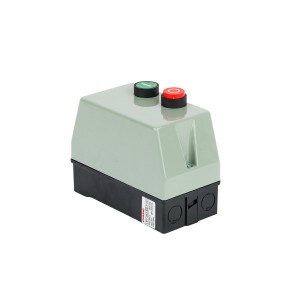

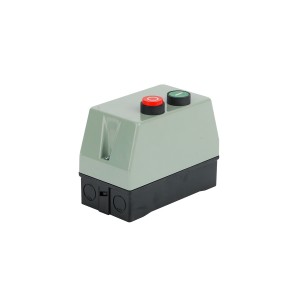

Magnetic Starter LE1 Series

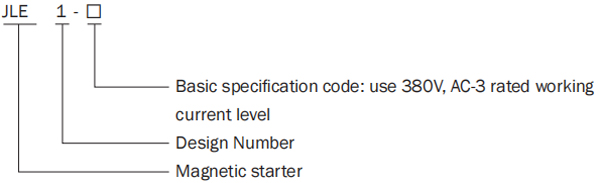

 Product Number

Structural Features

● The starter is of protective type, plastic shell type (JLE1-09~32) and metal shell type (JLE1-
40~95), and the protection level can reach IP65;
● The operating mechanism is a manual start and stop button, and the starter is an irreversible
starter with a thermal (overload) relay;
● The JLE1 AC contactor with 35mm standard rails selected in the starter can be directly buckled
on the base of the starter. The thermal (overload) relay three-phase lead hard wire can be
directly inserted into the three-phase main contact of the contactor, which is convenient for
assembly and wiring.

Main Parameters And Technical Performance

● The main technical performance indicators and component equipment of the starter (see Table 1);
● The starter rated control circuit voltage Us is: AC 50/60Hz, 24V, 42V, 110V, 220/230V, 240V,
380/400V, 415V, 440V, 480V, 6OOV;
● Range of action:
○ Pull-in voltage: 50 or 60H 80%Us-110% Us; 50/60Hz 85%Us~110%Us;
○ Release voltage: 20%Us-75%Us
● The operating range of the starter with thermal (overload) relay has the operating characteristics
of thermal relay;
5. The operating frequency with thermal relay is 30 times/hour;

Technical Parameters

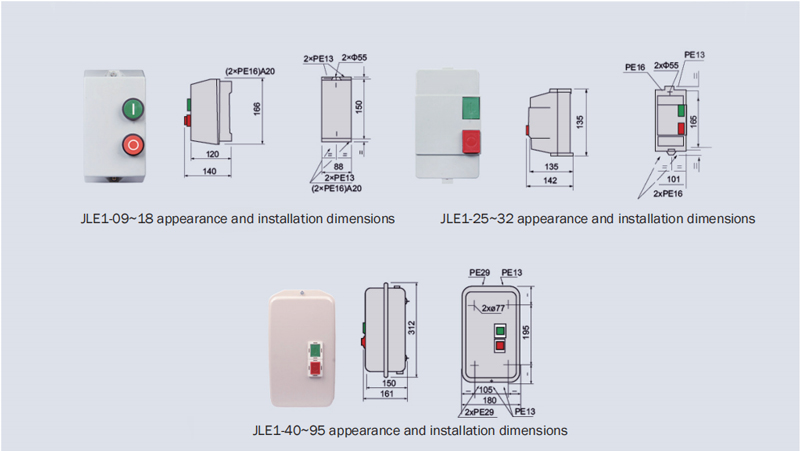

Shape And Installation Dimensions(mm)
