Application:

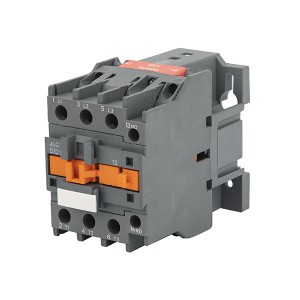

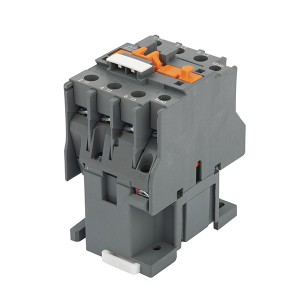

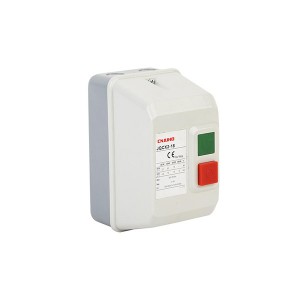

JQCX2-18 series magnetic starter mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 380V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.
Main specification:
| Type | Rated Current(A) | Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
| 220V 230V | 380V 400V | 415V | 440V | 500V | 660V 690V | |||
| QCX2-9 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | JR28 D1312 JR28 D1314 |
| QCX2-12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | JR28 D1316 |
| QCX2-18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | JR28 D1321 |
| QCX2-25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | JR28 D1322 JR28 D2353 |
| QCX2-32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | JR28 D2355 |
| QCX2-40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | JR28 D3353 JR28 D3355 |
| QCX2-50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | JR28 D3357 JR28 D3359 |
| QCX2-65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | JR28 D3361 |
| QCX2-80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | JR28 D3363 JR28 D3365 |
| QCX2-95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | JR28 D3365 |
