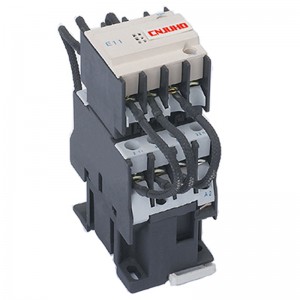

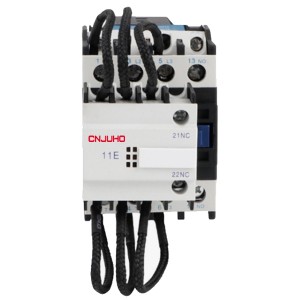

Capacitor duty contactor JLC1-DK63 is especailly used for low voltage shunt capacitor. And it widely used in reactive power compensation equipment with AC 50Hz and voltage 380V, inrush current system in the contactor can decrease shock to capactior and lower switching overvoltagein while breaking a circuit. Moreover, it can replace transfer device which are composed of one contactor and three current limiting reactors, its feature is small, light, joins convenient and reliable, huge capacity of turning on/off.
This product conforms to GB14048.4,IEC60947-4-1 standard.
| Item | Voltage | JLC1-DK25 | JLC1-DK32 | JLC1-DK43 | JLC1-DK63 | JLC1-DK95 | ||||
| Electrical life 104 | 10 | 10 | 10 | 10 | 10 | |||||
| Rated current (380v)A | 17 | 23 | 29 | 43 | 63 | |||||
| Controllable capacity (kvar) | 220v | 6 | 9 | 10 | 15 | 22 | ||||
| 380v | 12 | 18 | 20 | 30 | 44 | |||||
| Rated insulating voltage (V) | 500 | 500 | 500 | 500 | 500 | |||||
| Surge limiting capacity | 20le | 20le | 20le | 20le | 20le | |||||
| Operating conditions | Absorbing (85%-110%)US release (20%~75%)Us | |||||||||
| Coil burden (start up /lasting )VA | 70/8 | 110/11 | 110/11 | 200/20 | 200/20 | |||||
| Control capacity of auxiliary contact | AC 15 360VA DC-13 33W | |||||||||
| Weight | 0.44 | 0.63 | 0.64 | 1.4 | 1.5 | |||||
| Contactor model | A max | B max | C max | D max | E | F | Notes | |||
| JLC1-DK25 | 80 | 47 | 124 | 76 | 34/35 | 50/60 | Screw mounting and 35mm railway available | |||
| JLC1-DK32 | 90 | 58 | 132 | 86 | 40 | 48 | ||||
| JLC1-DK43 | 90 | 58 | 136 | 86 | 40 | 48 | ||||
| JLC1-DK63 | 132 | 79 | 150 | Except for screw mounting ,also can use 35 70mm railway available | ||||||
| JLC1-DK95 | 135 | 87 | 158 | |||||||
