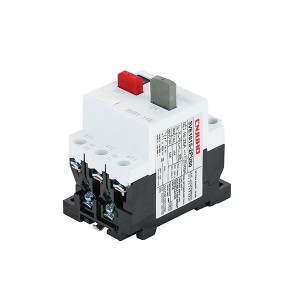

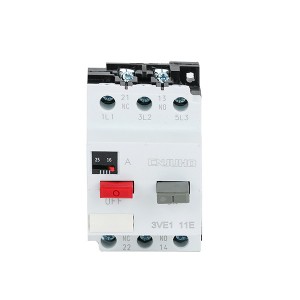

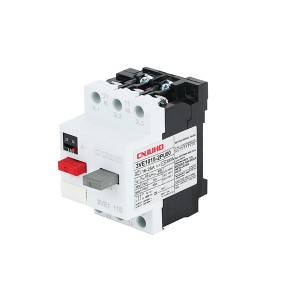

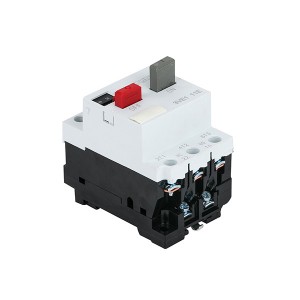

J3VE series molded case circuit breakers (hereinafter referred to as circuit breakers) are suitable for dry AC 50Hz, rated working voltage AC380V, AC660V, and rated current 0.1A to 63A. It can be used as overload and short circuit protection of electric motors. It can also be used as power distribution circuit. Used for overload and short circuit protection of electrical equipment. Under normal conditions, it can also be used for infrequent switching of lines and infrequent starting of motors. This series of products comply with GB/T14048.2 and IEC60947-2 standards.
● This series of circuit breakers are mainly composed of mechanism, contact system, tripping device of arc extinguishing system, insulating base and shell.
● J3VE1 type circuit breakers are equipped with auxiliary contacts. J3VE3 and J3VE4 type circuit breakers are not equipped with auxiliary contacts, but they can be equipped with auxiliary contact accessories.
● There are two types of trips in circuit breakers: one is a bimetallic inverse time delay trip for overload protection; the other is an electromagnetic instantaneous trip for short-circuit protection. The circuit breaker also has a temperature compensation device, so the protection characteristics are not affected by the ambient temperature.
● J3VE1, J3VE3 and J3VE4 circuit breakers are operated by button, knob and handle respectively.

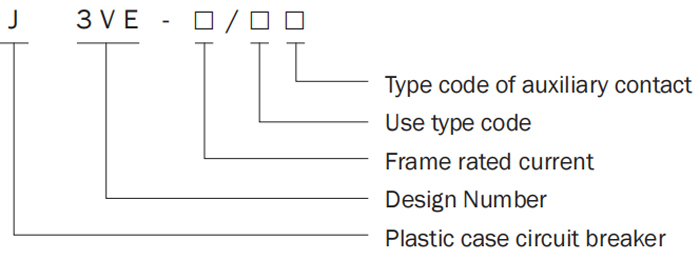

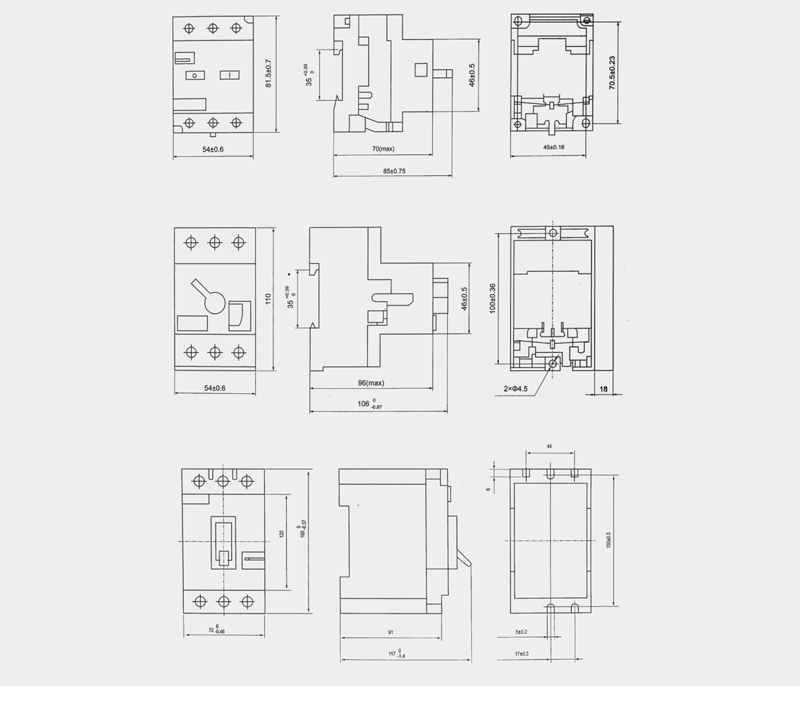

● The circuit breaker is installed in front of the board. J3VE1, J3VE3, type circuit breakers also have a standard mounting card, which can be directly installed on a standard rail with a width of 35mm (should comply with DINEN50022).
● The mechanism of J3VE3 and J3VE4 circuit breakers uses quick-on and quick-break structures, and their tripping devices have limited current characteristics, so the circuit breaker has a high short-circuit breaking capacity.
● The front of the circuit breaker has a pointer for adjusting the current of the tripping device, which can set the tripping current within the specified range.
● The circuit breaker can be attached with accessories such as undervoltage release, shunt release, indicator light, lock, and various protection types of enclosures. Please specify when ordering.
| Model | 3VE1 | 3VE3 | 3VE4 | ||||
| Pole NO. | 3 | 3 | 3 | ||||
| Rated Voltage(V) | 660 | 660 | 660 | ||||
| Rated Current(A) | 20 | 20 | 20 | ||||
| Rated breaking capacity of short circuit | 220V | 1.5 | 10 | 22 | |||
| 380V | 1.5 | 10 | 22 | ||||
| 660V | 1 | 3 | 7.5 | ||||
| Mechanic life | 4×104 | 4×104 | 2×104 | ||||
| Electric life | 5000 | 5000 | 1500 | ||||
| Auxiliary Contact Parameters | DC | AC | |||||
| Rated Voltage(V) | 24, 60, 110, 220/240 | 220 | 380 | It can be matched with the auxiliary contact only | |||
| Rated Current(A) | 2.3, 0.7, 0.55, 0.3 | 1.8 | 1.5 | ||||
| Protective Features | Motor Protection | Su Current Multiple | 1.05 | 1.2 | 6 | ||
| Action Time | No action | <2h | >4s | ||||
| Distribution Protection | Su Current Multiple | 1.05 | 1.2 | ||||
| Action Time | No action | <2h | |||||
| Model | Rated Current(A) | Release Current Setting area(A) | Auxiliary contacts |
| 3VE1 | 0.16 | 0.1-0.16 | without |
| 0.25 | 0.16-0.25 | ||
| 0.4 | 0.25-0.4 | ||
| 0.63 | 0.4-0.63 | ||
| 1 | 0.63-1 | 1NO+1NC | |
| 1.6 | 1-1.6 | ||
| 2.5 | 1.6-2.5 | ||
| 3.2 | 2-3.2 | ||
| 4 | 2.5-4 | 2NO | |
| 4.5 | 3.2-5 | ||
| 6.3 | 4-6.3 | ||
| 8 | 5-8 | ||
| 10 | 6.3-10 | 2NC | |
| 12.5 | 8-12.5 | ||
| 16 | 10-16 | ||
| 20 | 14-20 | ||
| 3VE3 | 1.6 | 1-1.6 | Special |
| 2.5 | 1.6-2.5 | ||
| 4 | 2.5-4 | ||
| 6.3 | 4-6.3 | ||
| 10 | 6.3-10 | ||
| 12.5 | 8-12.5 | ||
| 16 | 10-16 | ||
| 20 | 12.5-20 | ||
| 25 | 16-25 | ||
| 32 | 22-32 | ||
| 3VE4 | 10 | 6.3-10 | Special |
| 16 | 10-16 | ||
| 25 | 16-25 | ||
| 32 | 22-32 | ||
| 40 | 28-40 | ||
| 50 | 36-50 | ||
| 63 | 45-63 |
