Application:

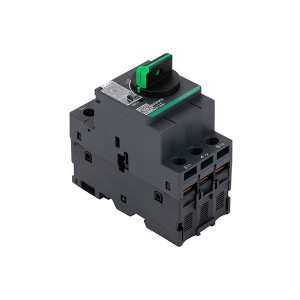

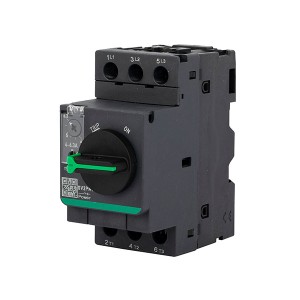

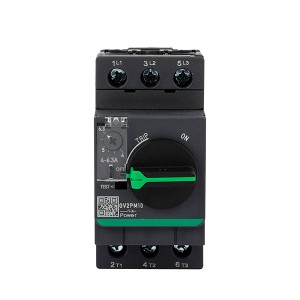

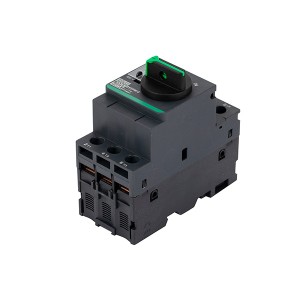

GV2PM TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary handle, 6 to 10 A, screw clamp,this type motor protection circuit breaker is modular design, deautiful appearance, phase failure protection,built-in thermal relay, strong function and good versatility.It is confirmed to IEC60947-2
Parameter data sheet
| Range | TeSys Deca |
| Product name | GV2P |
| Product or Component Ampere range | GV2PM01 0.1-0.16A GV2PM02 0.16-0.25A GV2PM03 0.25-0.4A GV2MP04 0.4-0.63A GV2PM05 0.63-1A GV2PM06 1-1.6A GV2PM07 1.6-2.5A GV2PM08 2.5-4A GV2PM10 4-6.3A GV2PM14 6-10A GV2PM16 9-14A GV2PM20 13-18A GV2PM21 17-23A GV2PM32 24-32A |
| Device short name | AC-4;AC-1;AC-3;AC-3e |
| Device Application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1 |
| Motor power kW | 3 kW 400/415 V AC 50/60 Hz 5 kW 500 V AC 50/60 Hz 5.5 kW 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2 |
| Control Type | Rotary handle |
| Line Rated Current | 10 A |
| Thermal protection adjustment range | 6…10 A IEC 60947-4-1 |
| Magnetic tripping current | 149A |
| [Ith] conventional free air thermal current | 10 A IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In |
| Rated duty | Continuous IEC 60947-4-1 |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws) |
| Mounting position | Horizontal /Vertical |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C)
|
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 30 Gn for 11 ms Vibrations 5 Gn, 5…150 Hz |
| Operating altitude | 6561.68 ft (2000 m) |
Product dimension | 1.8 in (45 mm)x3.5 in (89 mm)x3.8 in (97 mm) |
