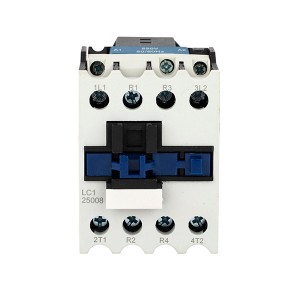

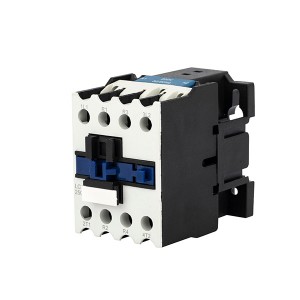

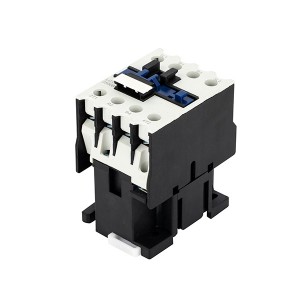

CJX2-25008 series 4N.O AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 25A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947-4-1 standard.
| Type | LC1 4P AC CONTACTORS | |||||
| D09008/ D09004 | D12008 D12004 | D18008 D18004 | D25008 D25004 | D32008 D32004 | ||
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
| Standard power ratings of 3-phase motors 50/60Hz in | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC3(x104) | 100 | 100 | 100 | 100 | 800 |
| AC4(x104) | 20 | 20 | 20 | 20 | 20 | |
| Mechanical life (x104)4 | 1000 | 1000 | 1000 | 20 | 800 | |
| Number of the contacts | 4P+4NO/2NO+2NC | |||||
| Type | LC1 | |||||
| D40008 D40004 | D50008 D50004 | D65008 D65004 | D80008 D80004 | D95008 D95004 | ||
| Rated working current (A) | AC3 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 18.5 | 24 | 28 | 37 | 44 | |
| Standard power ratings of 3-phase motors 50/60Hz in | 220/230V | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 22 | 25 | 37 | 45 | 45 | |
| 500V | 22 | 30 | 37 | 55 | 55 | |
| 660/690V | 30 | 33 | 37 | 45 | 55 | |
| Rated heat current (A) | 60 | 80 | 80 | 125 | 125 | |
| Electrical life | AC3(x104) | 80 | 60 | 60 | 60 | 60 |
| AC4(x104) | 15 | 15 | 15 | 10 | 10 | |
| Mechanical life (x104)4 | 800 | 800 | 800 | 600 | 600 | |
| Number of the contacts | 4P+4NC/NO/2NO+2NC | |||||
