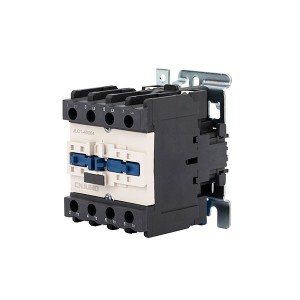

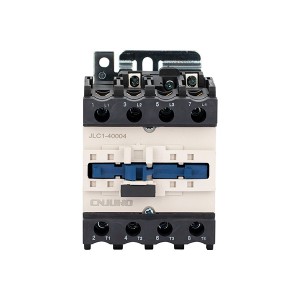

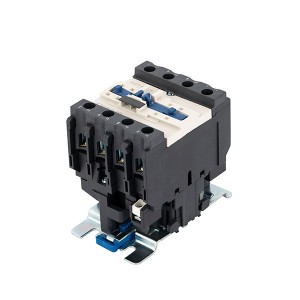

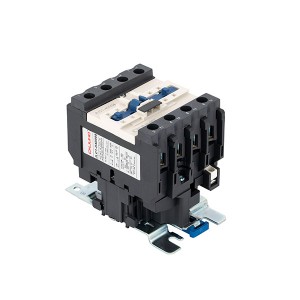

LC1D 4N.O or 2N.O+2N.C series 4pole AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947-4-1 standard.
| Type | LC1 4P AC CONTACTORS | |||||
| D09008/ D09004 | D12008 D12004 | D18008 D18004 | D25008 D25004 | D32008 D32004 | ||
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
| Standard power ratings of 3-phase motors 50/60Hz in | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC3(x104) | 100 | 100 | 100 | 100 | 800 |
| AC4(x104) | 20 | 20 | 20 | 20 | 20 | |
| Mechanical life (x104)4 | 1000 | 1000 | 1000 | 20 | 800 | |
| Number of the contacts | 4P+4NO/2NO+2NC | |||||
| Type | LC1 4pole ac contactor | |||||
| D40008 D40004 | D50008 D50004 | D65008 D65004 | D80008 D80004 | D95008 D95004 | ||
| Rated working current (A) | AC3 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 18.5 | 24 | 28 | 37 | 44 | |
| Standard power ratings of 3-phase motors 50/60Hz in | 220/230V | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 22 | 25 | 37 | 45 | 45 | |
| 500V | 22 | 30 | 37 | 55 | 55 | |
| 660/690V | 30 | 33 | 37 | 45 | 55 | |
| Rated heat current (A) | 60 | 80 | 80 | 125 | 125 | |
| Electrical life | AC3(x104) | 80 | 60 | 60 | 60 | 60 |
| AC4(x104) | 15 | 15 | 15 | 10 | 10 | |
| Mechanical life (x104)4 | 800 | 800 | 800 | 600 | 600 | |
| Number of the contacts | 4P+4NC/NO/2NO+2NC | |||||
