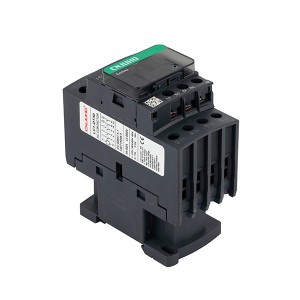

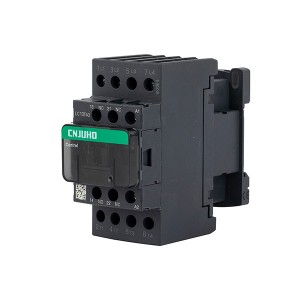

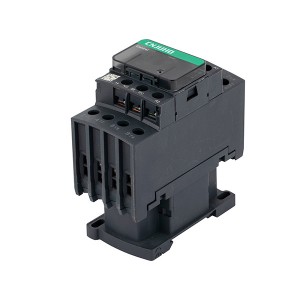

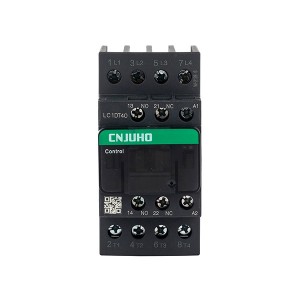

4P CONTACTOR 40A AC-1 240VAC COIL
TeSys D contactor, 4P(4 NO), AC-1, <= 440 V, 40 A, 240 V AC 50/60 Hz coil TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 240 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Parameter data sheet
| Product or Component Type | Contactor |
| Device short name | LC1DT40M7 |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| Poles description | 4P |
| [Ue] rated operational voltage | Power circuit <= 690 V AC 25…400 Hz;Power circuit <= 300 V DC |
| [Ie] rated operational current | 40 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Pole contact composition | 4 NO |
| Protective cover | with |
| [Ith] conventional free air thermal current | 10 A 140 °F (60 °C) signalling circuit;40 A 140 °F (60 °C) power circuit |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 450 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity | 450 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 50 A 104 °F (40 °C) – 10 min power circuit;120 A 104 °F (40 °C) – 1 min power circuit;240 A 104 °F (40 °C) – 10 s power circuit;380 A 104 °F (40 °C) – 1 s power circuit;100 A – 1 s signalling circuit;120 A – 500 ms signalling circuit;140 A – 100 ms signalling circuit |
| Associated fuse rating | 10 A gG signalling circuit IEC 60947-5-1;63 A gG <= 690 V type 1 power circuit;40 A gG <= 690 V type 2 power circuit |
| Average impedance | 2 mOhm – Ith 40 A 50 Hz for power circuit |
| Power dissipation per pole | 3.2 W AC-1 |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1 Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified |
| Overvoltage category | III |
pollution degree | 3 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947 |
safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
mechanical durability | 15 Mcycles |
electrical durability | 1.4 Mcycles 40 A AC-1 <= 440 V |
| Control circuit type | AC 50/60 Hz |
coil technology | Without built-in suppressor module |
| Control circuit voltage limits | 0.3…0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8…1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85…1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1…1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz |
| Inrush power in VA | 70 VA 60 Hz 0.75 68 °F (20 °C));70 VA 50 Hz 0.75 68 °F (20 °C)) |
| Hold-in power consumption in VA | 7.5 VA 60 Hz 0.3 68 °F (20 °C));7 VA 50 Hz 0.3 68 °F (20 °C)) |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Operating time | 12…22 ms closing 4…19 ms opening |
| Maximum operating rate | 3600 cyc/h at 60 °C |
tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors Philips No 2;Power circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors flat Ø 6 mm;Power circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors Philips No 2;Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) EverLink BTR screw connectors pozidriv No 2 |
auxiliary contact composition | 1 NO + 1 NC |
auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1 |
signalling circuit frequency | 25…400 Hz |
minimum switching voltage | 17 V signalling circuit |
minimum switching current | 5 mA signalling circuit |
insulation resistance | > 10 MOhm signalling circuit |
non-overlap time | 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact |
Mounting Support | Plate;Rail |
standards | CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1 |
Product Certifications | LROS (Lloyds register of shipping);CSA;UL;GOST;DNV;CCC;GL;BV;RINA;UKCA |
IP degree of protection | IP20 front face IEC 60529 |
protective treatment | THIEC 60068-2-30 |
climatic withstand | IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat |
permissible ambient air temperature around the device | -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating |
operating altitude | 0…9842.52 ft (0…3000 m) |
fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
flame retardance | V1 conforming to UL 94 |
mechanical robustness | Vibrations contactor open 2 Gn;5…300 Hz);Vibrations contactor closed 4 Gn;5…300 Hz);Shocks contactor open 10 Gn for 11 ms);Shocks contactor closed 15 Gn for 11 ms) |
Height*Width*Depth | 3.6 in (91 mm)x1.8 in (45 mm)x3.9 in (99 mm) |
Net Weight | 0.937 lb(US) (0.425 kg) |
Category | 22355-CTR;TESYS D;OPEN;9-38A DC |
Discount Schedule | I12 |
GTIN | 3389110353075 |
Returnability | Yes |
Country of origin | China |
Unit Type of Package 1 | PCE |
Number of Units in Package | 50PCS/CTN |
Warranty | 18 months |
