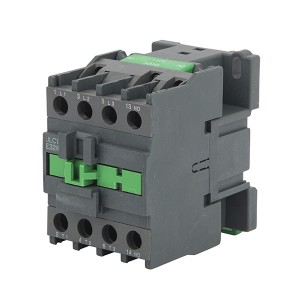

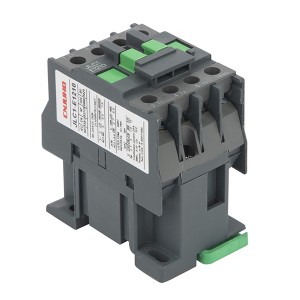

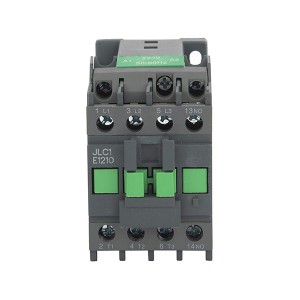

JLC1E09-32 series 660V 9-95A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 32A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, change over contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air time delay head, mechanical interlock mechanism, etc.
| Type | Rated insulation voltage(V) | Conventional thermal current(A) | Rated operation current(A) | Control power(kw) | No .of contacts | ||||
| 220V | 380V | 415V | 440V | 660V | |||||
| JLC1-E0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC |
| JLC1-E1210 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC | |
| JLC1-E1810 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC | |
| JLC1-E2510 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC | |
| JLC1-E3210 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC | |
| JLC1-E4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | |
| JLC1-E5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | ||
| JLC1-E6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | ||
| JLC1-E8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | ||
| JLC1-E9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | ||
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
The company mainly produces AC contactors, motor protectors and thermal relays.All products have passed the CE safety certification, and some have passed the CB certification.
