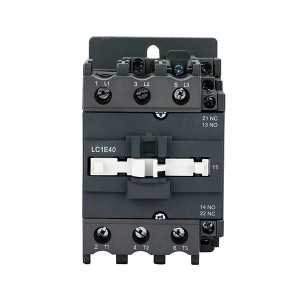

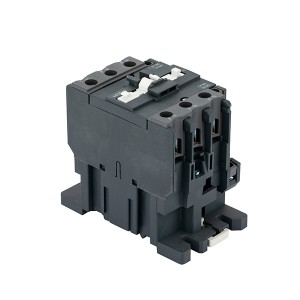

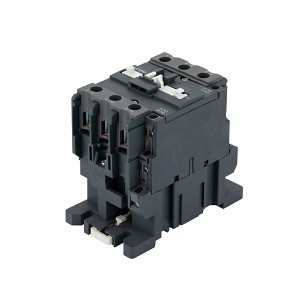

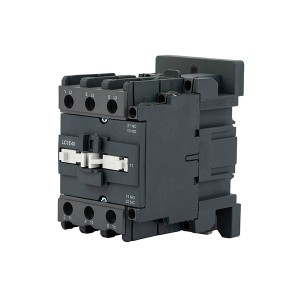

JLC1N series 660V 9-95A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air time delay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.
This product conforms to the requirement of IEC60947-4-1
| Type | Rated insulation voltage(V) | Conventional thermal current(A) | Rated operation current(A) | Control power(kw) | No .of contacts | ||||
| 220V | 380V | 415V | 440V | 660V | |||||
| JLC1-N0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC |
| JLC1-N1210 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC | |
| JLC1-N1810 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC | |
| JLC1-N2510 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC | |
| JLC1-N3210 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC | |
| JLC1-N4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | |
| JLC1-N5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | ||
| JLC1-N6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | ||
| JLC1-E8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | ||
| JLC1-N9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | ||
