JLP1-K series of DC contactor is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 12A, to connect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flash over design, with multi-function combination, small volume, and reliable performance. It can be widely applied to magnify/switch signal in micro-electronic interface.
| Type | Rated operational current(380A) | AC-3use group | contact number(1) | |||
| Control power KW | ||||||
| 220V | 380/415V | 440/500V | 600V | |||
| JLP1-K06 | 6 | 1.5 | 2.2 | 3 | 3 | 3P+NC 3P+NO |
| JLP1-K09 | 9 | 2.2 | 4 | 4 | 4 | 3P+NC 3P+NO |
| JLP1-K09 | 12 | 3 | 5 | 5 | 5 | 3P+NC 3P+NO |
| Type/Parameters | JLP1-K06 | JLP1-K09 | JLP1-K12 | |
| AC-3use group rated working current A | 380V | 6 | 9 | 12 |
| 660V | 5 | 7.5 | 10 | |
| Conventional thermal current (1th) V | 16 | 20 | 20 | |
| Rated working voltage(Ue) V | 380 660 | |||
| Rated insulation voltage(Ui) V | 390 | |||

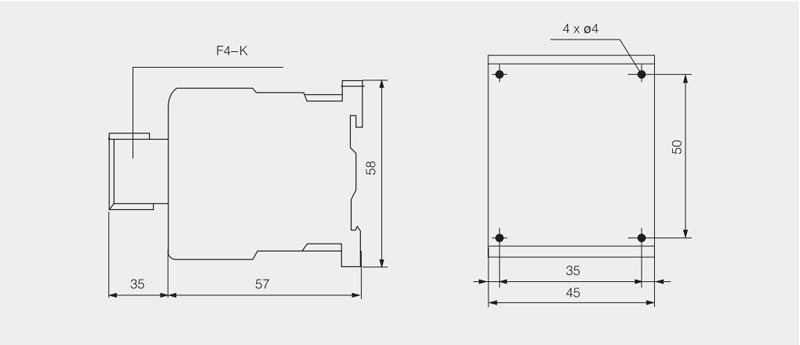

FIGURE 1 JLC1-K06~K12

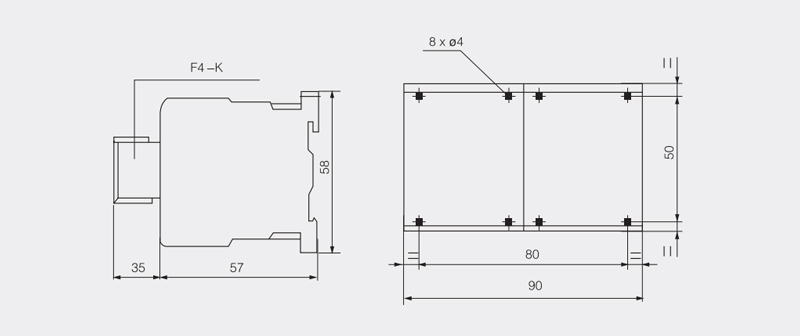

FIGURE 2 JLC1-K06N~K12N
When placing an order ,you should point out the below:
1. Product name and model, rated operational voltage and frequency of coil, order quantity.
Ordering example: JLC1-K0910 AC 220V 50Hz 10PCS
