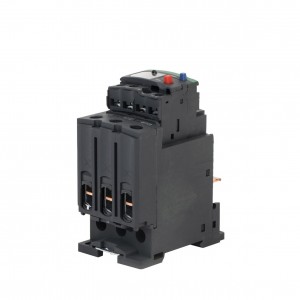

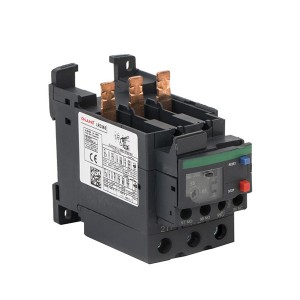

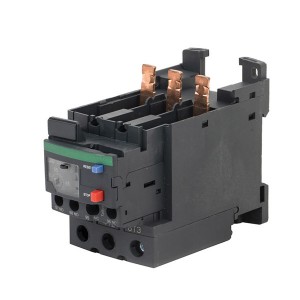

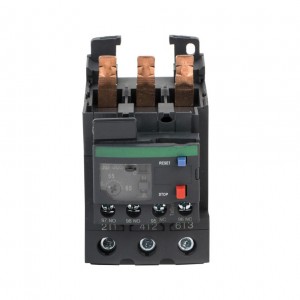

Home / Product / Relay / Thermal Overload Relay
| Product or Component Type | TeSys LRD;TeSys Deca |
| Product or Component Type | Differential thermal overload relay |
| Device short name | LRD365 |
| relay application | Motor protection |
| Product Compatibility | LC1D65A;LC1D50A |
| network type | DC;AC |
| thermal overload class | Class 10A IEC 60947-4-1 |
| thermal protection adjustment range | 48…65 A |
| [Ui] rated insulation voltage | Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1 |
| Network Frequency | 0…400 Hz |
| mounting support | Plate;with specific accessories;Rail;with specific accessories;Under contactor |
| tripping threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A signalling circuit |
| permissible current | 0.95 A 380 V AC-15 signalling circuit;0.06 A 440 V DC-13 signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0…400 Hz power circuit IEC 60947-4-1 |
| associated fuse rating | 4 A gG signalling circuit;4 A BS signalling circuit |
| [Uimp] rated impulse | 6 kV |
| phase failure sensitivity | Tripping current 130 % of Ir on two phase;the last one at 0 |
| control type | Red push-button stop;Blue push-button reset |
temperature compensation | -4…140 °F (-20…60 °C) |
tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors |
IP degree of protection | IP20 conforming to IEC 60529 |
climatic withstand | IACS E10 |
ambient air temperature for operation | -4…140 °F (-20…60 °C) without derating IEC 60947-4-1 |
Ambient Air Temperature for Storage | -76…158 °F (-60…70 °C) |
| flame retardance | V1 conforming to UL 94 |
mechanical robustness | Shocks15 Gn for 11 ms IEC 60068-2-7;Vibrations4 gn IEC 60068-2-6 |
| dielectric strength | 1.89 kV 50 Hz IEC 60947-1 |
| Standards | EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495 |
| Category | 22347-CONTACTOR;D-LINE;OVERLOADS-NEW |
| GTIN | 3389119215510 |
| Unit Type of Package 1 | PCE |
| Height*Width*Depth | 2.76 in (70 mm)*2.17 in (55 mm)*4.84 in (123 mm) |
| Net Weight | 0.83 lb(US) (0.375 kg) |
