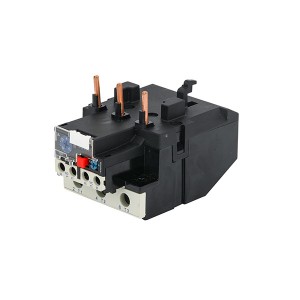

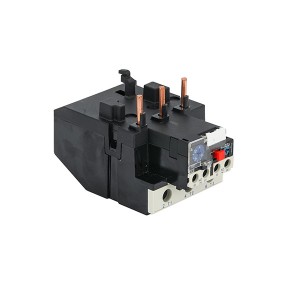

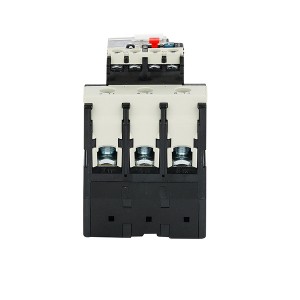

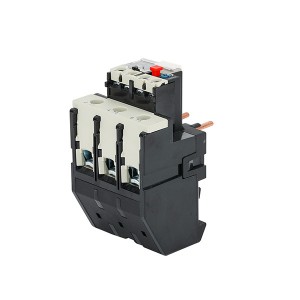

JLR2 series thermal relay is suitable for using in the circuit rated voltage up to 660V, rated current 93A AC 50/ 60Hz, for over-current protection of AC motor. The relay has the differential mechanism and temperature compensation and can plug in JLC1 series AC contactor. The product conforms to IEC60947-4-1 stardand.

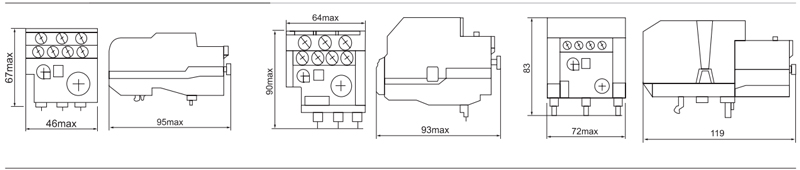

| No | Times of the setting current(A) | Motion time | Start condition | Ambient temperature | ||
| 1 | 1.05 | >2h | Cold state | 20±5°C
| ||
| 2 | 1.2 | <2h | Heat state | |||
| 3 | 1.5 | <4min | (Following the No.l test) | |||
| 4 | 7.2 | 10A | 2s<Tp<10s | <63A | Cold state | |
10 | 4s<Tp<10s | >63A | ||||
| No | Times of the setting current(A) | Motion time | Start condition | Ambient temperature | |
| Any two phases | Another phase | ||||
| 1 | 1.0 | 0.9 | >2h | Cold state | 20±5°C |
2 | 1.15 | 0 | <2h | Heat state (Following the No.l test) | |
Type | Number | Setting range (A) | For contactor |
|
JLR2-D13
| 1301 | 0.1~0.16 | JLC1-09~32 |
1302 | 0.16~0.25 | JLC1-09~32 | |
1303 | 0.25~0.4 | JLC1-09~32 | |
1304 | 0.4~0.63 | JLC1-09~32 | |
1305 | 0.63~1 | JLC1-09~32 | |
1306 | 1~1.6 | JLC1-09~32 | |
1307 | 1.6~2.5 | JLC1-09~32 | |
1308 | 2.5~4 | JLC1-09~32 | |
1310 | 4~6 | JLC1-09~32 | |
1312 | 5.5~8 | JLC1-09~32 | |
1314 | 7~10 | JLC1-09~32 | |
1316 | 9~13 | JLC1-09~32 | |
1321 | 12~18 | JLC1-09~32 | |
1322 | 17~25 | JLC1-32 | |
JLR2-D23
| 2353 | 23~32 | CJX2-09~32 |
2355 | 30~40 | JLC1-09~32 | |
|
JLR2-D33
| 3322 | 17~25 | JLC1-09~32 |
3353 | 23~32 | JLC1-09~32 | |
3355 | 30~40 | JLC1-09~32 | |
3357 | 37~50 | JLC1-09~32 | |
3359 | 48~65 | JLC1-09~32 | |
3361 | 55~70 | JLC1-09~32 | |
3363 | 63~80 | JLC1-09~32 | |
3365 | 80~93 | JLC1-95 | |
| JLR2-D43
| 4365 | 80~104 | JLC1-95 |
4367 | 95~120 | JLC1-95~115 | |
4369 | 110~140 | JLC1-115 |
