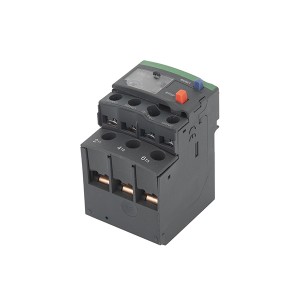

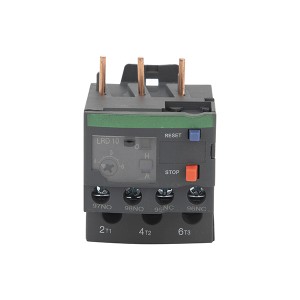

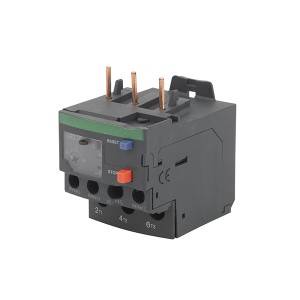

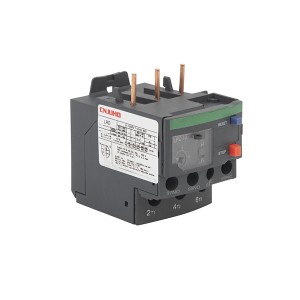

JLRD13 Thermal overload relay

JLRD series thermal relay is suitable for using in the circuits rated voltage up to 660V, rated current 93A AC 50/60Hz, for over-current protection of AC motor. The relay has the differential mechanism and temperature compensation and can plug in JLC1N series AC contactor. The product conforms to IEC60947-4-1 stardand.

Product Detail

Motion Characteristic: Three-Phase Balance Motion Time

No	Times of the setting current(A)	Motion time			Start condition	Ambient temperature
1	1.05	>2h			Cold state	20±5°C
2	1.2	<2h			Heat state
3	1.5	<4min			(Following the No.l test)
4	7.2	10A	2s<Tp<10s	<63A	Cold state
4	7.2	10	4s<Tp<10s	>63A	Cold state

Phase-Losing Motion Characteristic

No	Times of the setting current(A)		Motion time	Start condition	Ambient temperature
	Any two phases	Another phase
1	1.0	0.9	>2h	Cold state	20±5°C
2	1.15	0	<2h	Heat state (Following the No.l test)

Specification

Type	Number	Setting range (A)	For contactor
JLR2-D13	1301	0.1~0.16	JLC1-09~32
	1302	0.16~0.25	JLC1-09~32
	1303	0.25~0.4	JLC1-09~32
	1304	0.4~0.63	JLC1-09~32
	1305	0.63~1	JLC1-09~32
	1306	1~1.6	JLC1-09~32
	1307	1.6~2.5	JLC1-09~32
	1308	2.5~4	JLC1-09~32
	1310	4~6	JLC1-09~32
	1312	5.5~8	JLC1-09~32
	1314	7~10	JLC1-09~32
	1316	9~13	JLC1-09~32
	1321	12~18	JLC1-09~32
	1322	17~25	JLC1-32
JLR2-D23	2353	23~32	CJX2-09~32
JLR2-D23	2355	30~40	JLC1-09~32
JLR2-D33	3322	17~25	JLC1-09~32
	3353	23~32	JLC1-09~32
	3355	30~40	JLC1-09~32
	3357	37~50	JLC1-09~32
	3359	48~65	JLC1-09~32
	3361	55~70	JLC1-09~32
	3363	63~80	JLC1-09~32
	3365	80~93	JLC1-95
JLR2-D43	4365	80~104	JLC1-95
	4367	95~120	JLC1-95~115
	4369	110~140	JLC1-115
